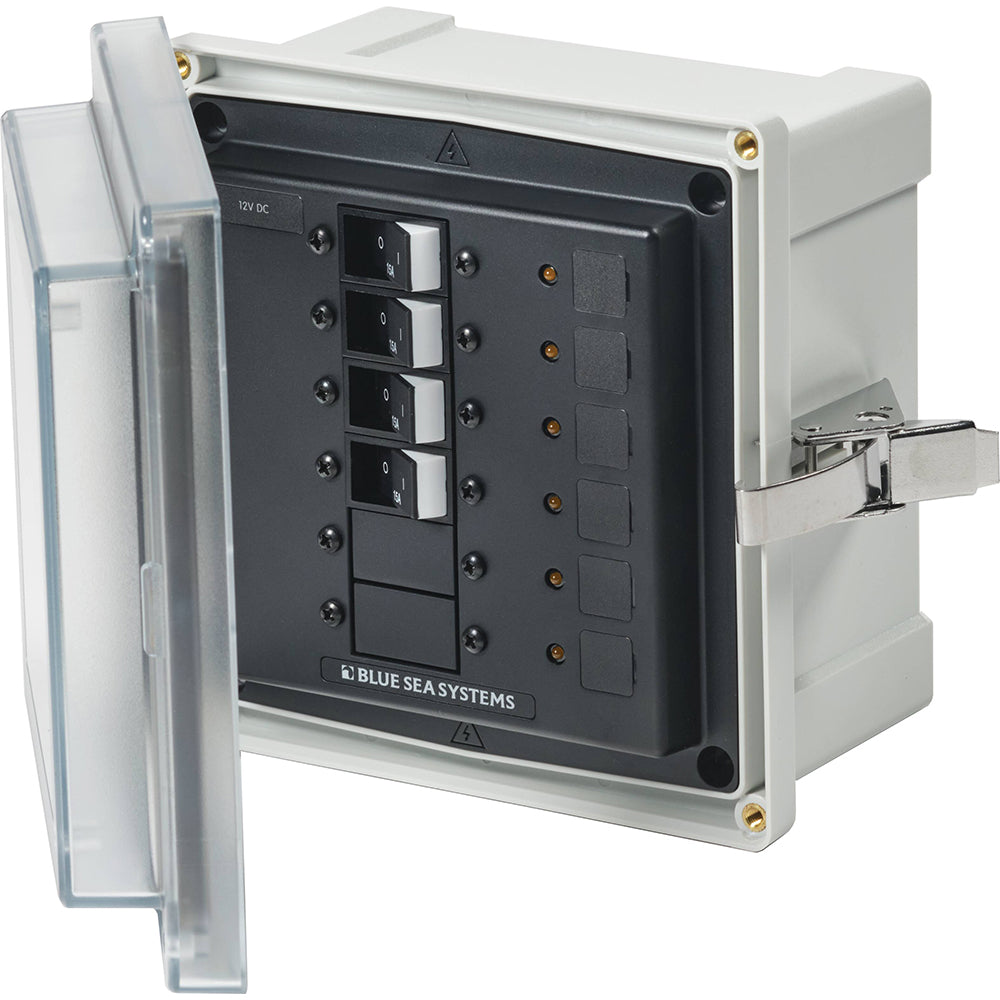

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC The 3134-panel enclosure for DC circuit breakers and other large frame devices. Features: Blank apertures for custom breaker loading Glass-filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for backlighting and ON indication Technical Specifications: Circuit Breaker Type - 4 x Branch 12/24V DC (15A) Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 6 x Amber ON indicating 12/24V DC In the Box: 3134 Enclosure Glands x 6 Labels Mounting hardware Instruction manual *Sold as an Individual

Selling pack: Each.

Supplier product image; representative of the product. Refer to the title and description for rating, length and selling quantity.
