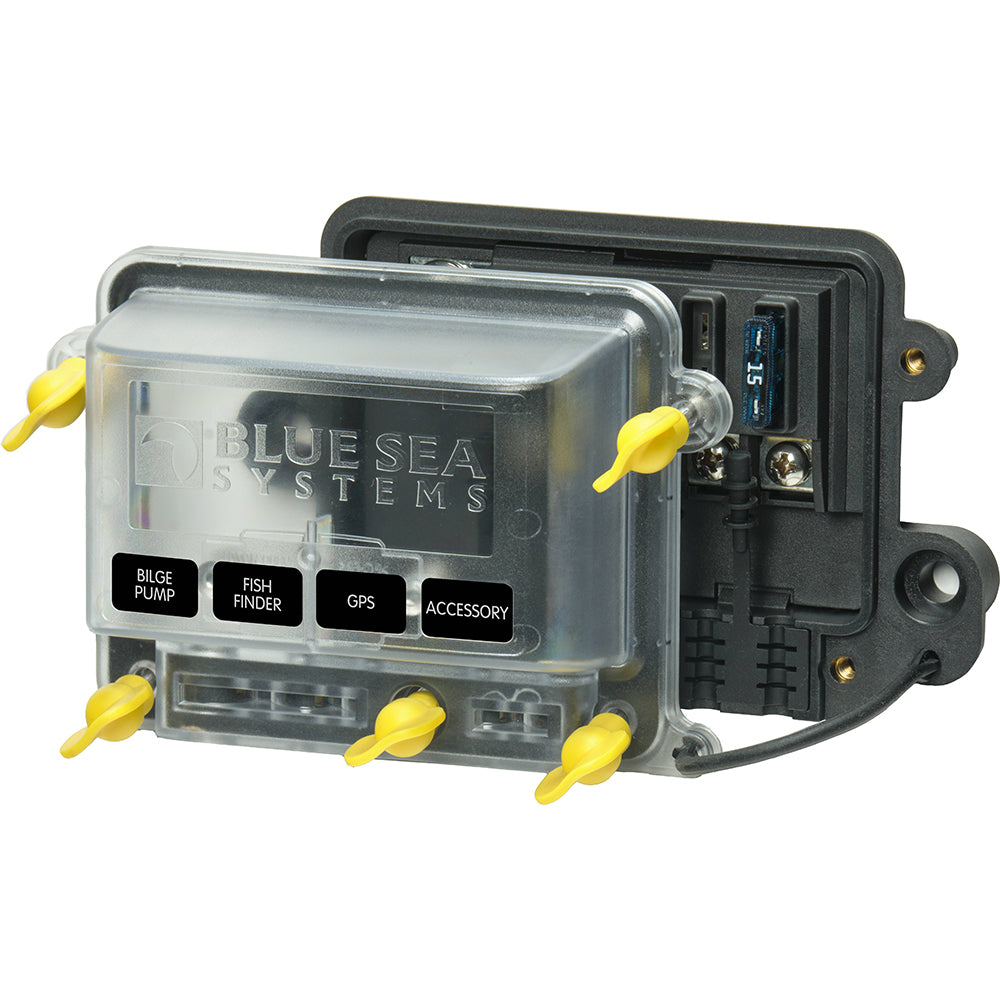

5056100 - Water Resistant ST-Blade Fuse Block with Cover

5056100 - Water Resistant ST-Blade Fuse Block with Cover This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access. Features: Water-resistant design with a standard ring or spade-type terminals Allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required Accepts ATO and ATC fast acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire 5056100 meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Spare fuse and fastener storage in cover Wing screws designed for tool-free installation of cover to meet ABYC compliance Technical Specifications: Cover - yes Maximum Voltage - 32V DC Bus Material - Tin-plated Copper Mounting Holes - Accepts 1/4" (6mm) screws Terminal Screws - 4 x # 8-32 with captive star lock washer Wire Size - Input - (1) 8 AWG to 4 AWG Wire Size - Load - (4) 16 AWG to 10 AWG In the Box: 5056100 Busbar Instruction Manual *Sold as an Individual

Selling pack: Each.

Supplier product image; representative of the product. Refer to the title and description for rating, length and selling quantity.
