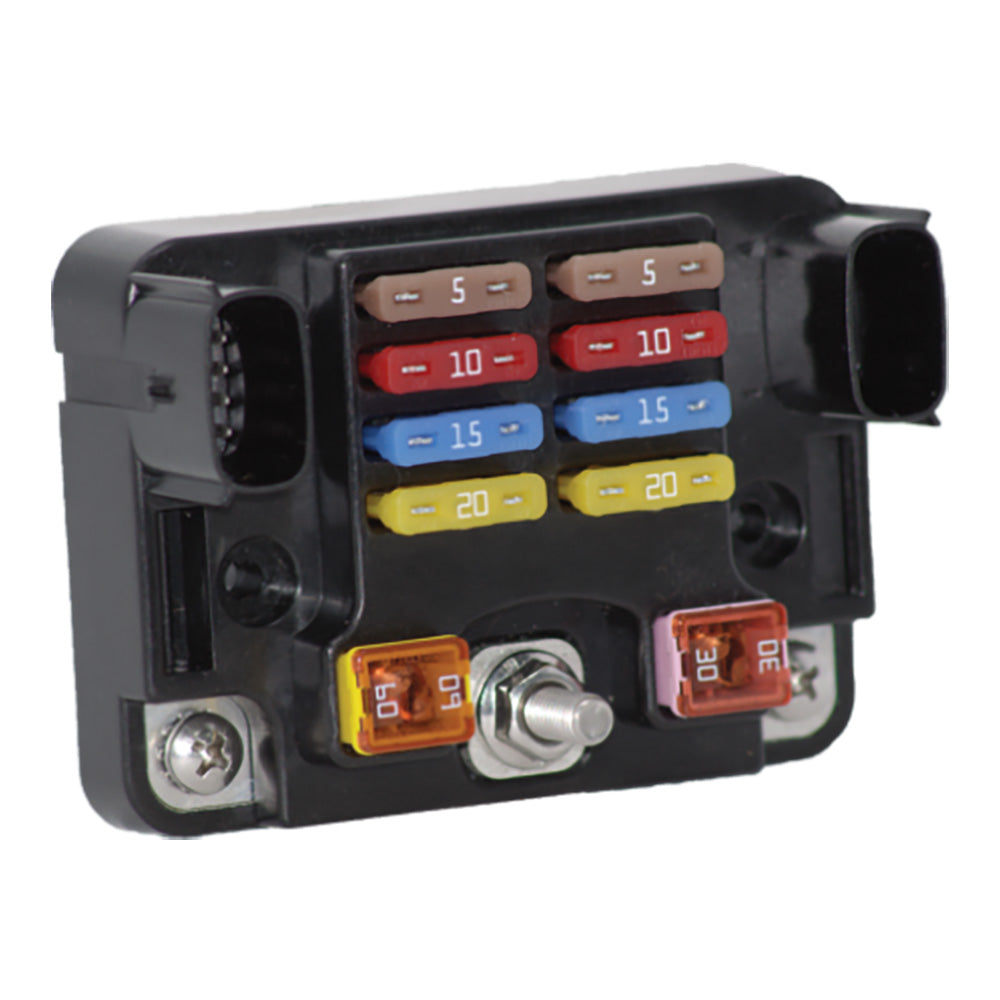

8 + 2 Fuse Block
8 + 2 Fuse Block
- Total Continuous Current (AMPS)
- 200 AMPS
- Max Current Per ATO Fuse (AMPS)
- 22 AMPS
- Voltage Range (V DC)
- 8-36V DC
- Max Current Per LP J Case Fuse (AMPS)
- 50 AMPS
Regular price
$58.82
Sale price
$58.82
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
8 + 2 Fuse Block
Applications:
- Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
- Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
- Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
Features:
- Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
- Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
- 4 Year Industry Leading Warranty
Specifications:
- Total Continuous Current (AMPS): 200 AMPS
- Max Current Per ATO Fuse (AMPS): 22 AMPS
- Voltage Range (V DC): 8-36V DC
- Max Current Per LP J Case Fuse (AMPS): 50 AMPS
- Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
- Max Wire Gauge, MX-150 Connector: 14 AWG
Selling pack: Each
Specifications
Technical details
| Total Continuous Current (AMPS) | 200 AMPS |
|---|---|
| Max Current Per ATO Fuse (AMPS) | 22 AMPS |
| Voltage Range (V DC) | 8-36V DC |
| Max Current Per LP J Case Fuse (AMPS) | 50 AMPS |
| Max Current Per 4 Pos MX-150 (AMPS) | 50 AMPS |
| Max Wire Gauge, MX-150 Connector | 14 AWG |
Product & packaging
| Brand / supplier | Egis Mobile Electric |
|---|---|
| Selling pack | Each |
| Product category | Fuses & fuse holders |
