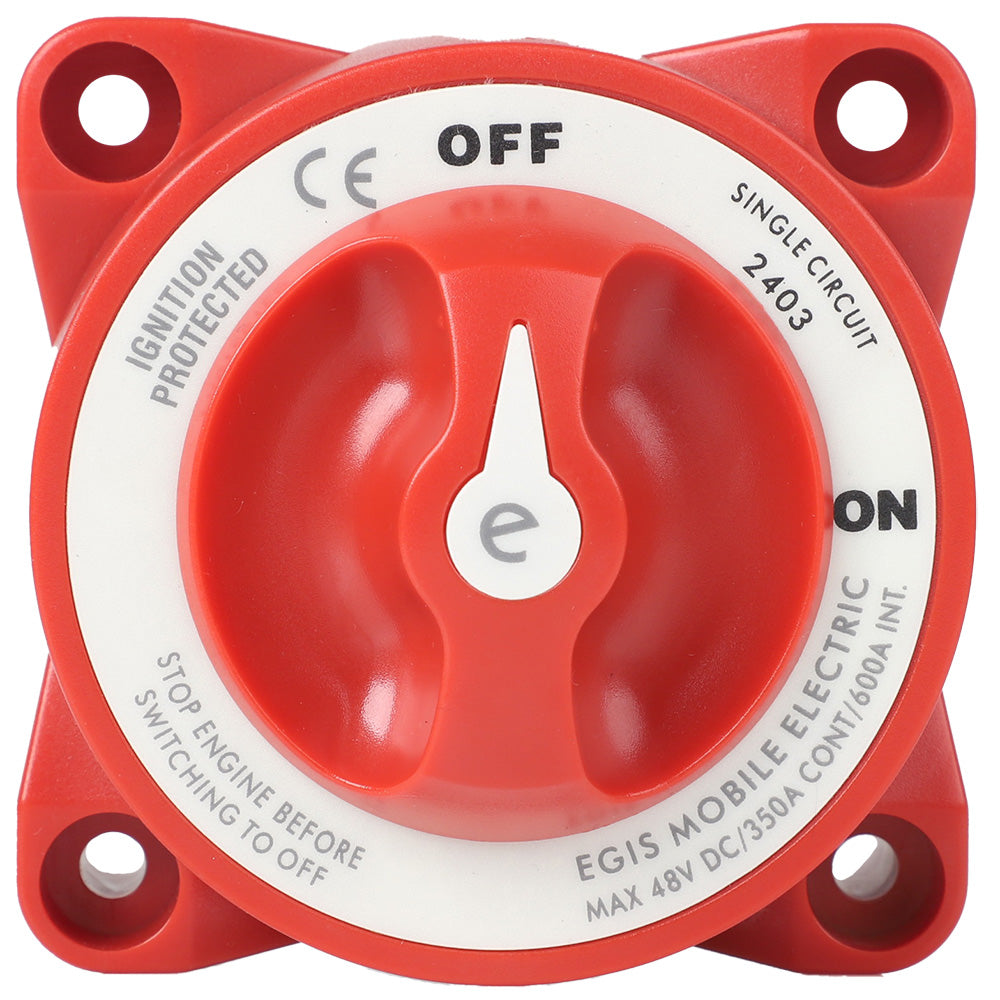

E-Series 350A Battery Switch Off/On
E-Series 350A Battery Switch Off/On
- Maximum Voltage (Single Circuit)
- 48 Vdc
- Maximum Voltage (Selector / Dual Circuit)
- 32 Vdc
- Stud Size And Thread
- 3/8”-16
- Terminal Stud Torque
- 140 in-lbs (15.8 N-m)
Shipping options and charges are shown at checkout.
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
E-Series 350A Battery Switch Off/On
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 140 in-lbs (15.8 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #1/4" (M6) Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
- Cable Size to Meet Rating: 4/0 AWG
Selling pack: Each
Specifications
Technical details
| Maximum Voltage (Single Circuit) | 48 Vdc |
|---|---|
| Maximum Voltage (Selector / Dual Circuit) | 32 Vdc |
| Stud Size And Thread | 3/8”-16 |
| Terminal Stud Torque | 140 in-lbs (15.8 N-m) |
| Ring Terminal Size Acceptance | 3/8” (M10) |
| Mounting Holes | #1/4" (M6) Screw |
| Live Switching Rating | 25 Amps |
| Ignition Protection Rating | SAE J1171 / ISO 8846 |
| Bulkhead / Panel - Mounting Hole Size | 3-5/8" Diameter |
| Cable Size to Meet Rating | 4/0 AWG |
Product & packaging
| Brand / supplier | Egis Mobile Electric |
|---|---|
| Selling pack | Each |
| Product category | Battery management |
