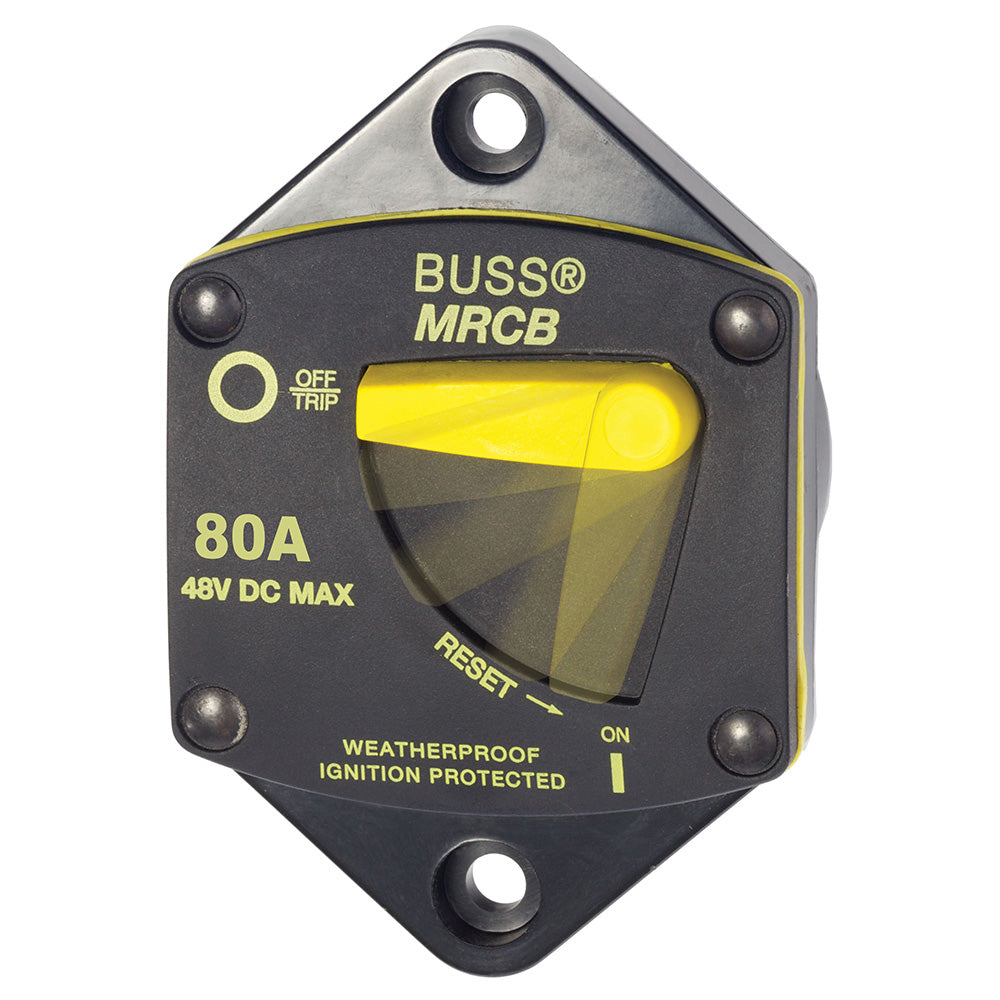

7042 187-Series Circuit Breaker - Panel Mount 80A
7042 187-Series Circuit Breaker - Panel Mount 80A
- Amperage
- 80A
- Maximum Voltage
- 48V DC
- Mounting
- Panel Mount
- Circuit Breaker Type
- Thermally responsive Bi-metal blade
Regular price
$127.60
Sale price
$127.60
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
7042 187-Series Circuit Breaker - Panel Mount 80A
Features:
- Combines switching and circuit protection into a single device*
- Precise, single-lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Ample Clearance around terminal studs accepts heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition-protected - Safe for installation aboard gasoline powered boats
Specifications:
- Amperage: 80A
- Maximum Voltage: 48V DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 75 in-lb (8.47 Nm)
- Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Case Material: Thermoset Polyester
- Circuit Breaker Class: Type III - switchable/manual reset - trip-free
- Mounting Hole: Accept #10 (M5) Screw
- Terminal Stud Size: 5/16" - 18
- Weight: 0.5lb (0.23 kg)
- Weight: 0.50lb (0.23 kg)
* Do not use as a switch where high inrush currents are expected.
Selling pack: Each
Specifications
Technical details
| Amperage | 80A |
|---|---|
| Maximum Voltage | 48V DC |
| Mounting | Panel Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity | 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Case Material | Thermoset Polyester |
| Circuit Breaker Class | Type III - switchable/manual reset - trip-free |
| Mounting Hole | Accept #10 (M5) Screw |
| Terminal Stud Size | 5/16" - 18 |
| Weight | 0.5lb (0.23 kg) |
| Weight | 0.50lb (0.23 kg) |
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Circuit breakers |
