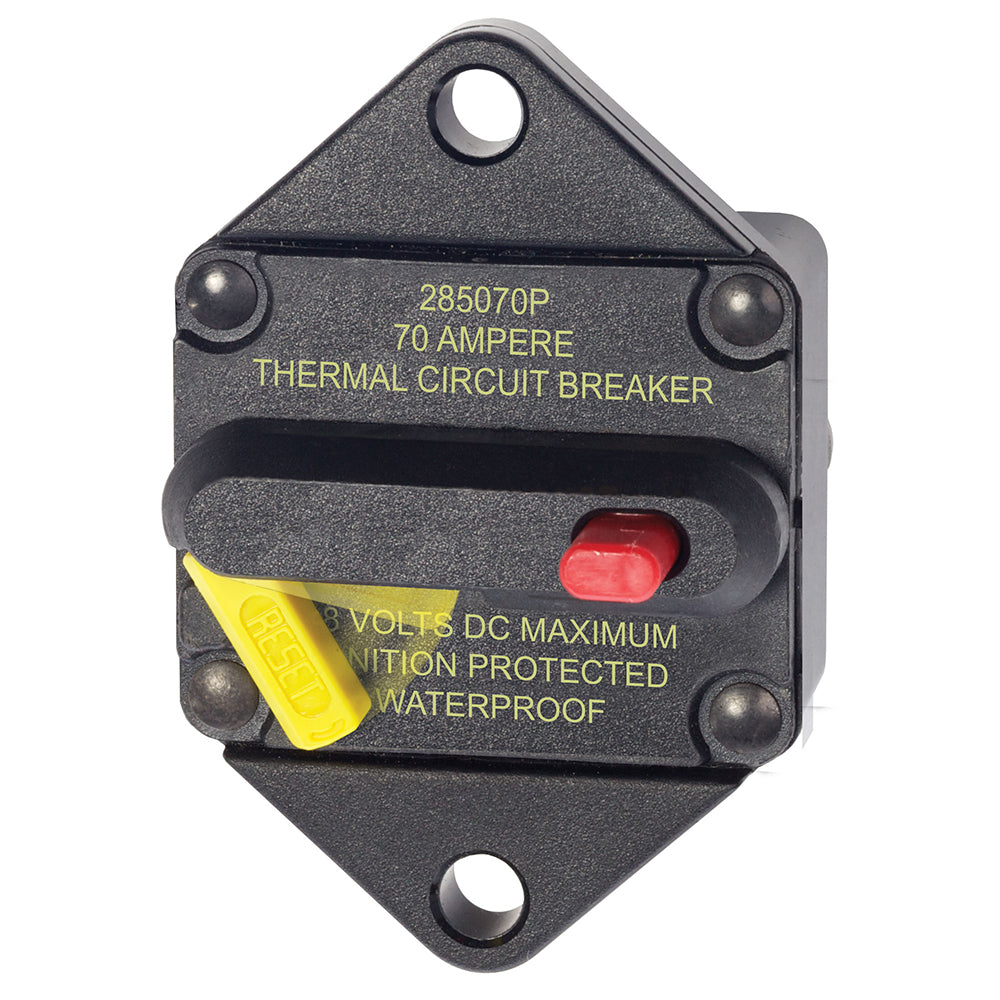

7085 70 Amp Circuit Breaker Panel Mount 285 Series

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

• Drop in replacement for 185-Series Circuit Breakers

• Visible reset lever shows open condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Meets SAE J1171 external ignition protection requirements

• Weather Resistant

• Combines switching and circuit breaker function into one unit

• "Trip Free" - cannot be held closed after trip

* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40°C to 85°C
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

Selling pack: Each
