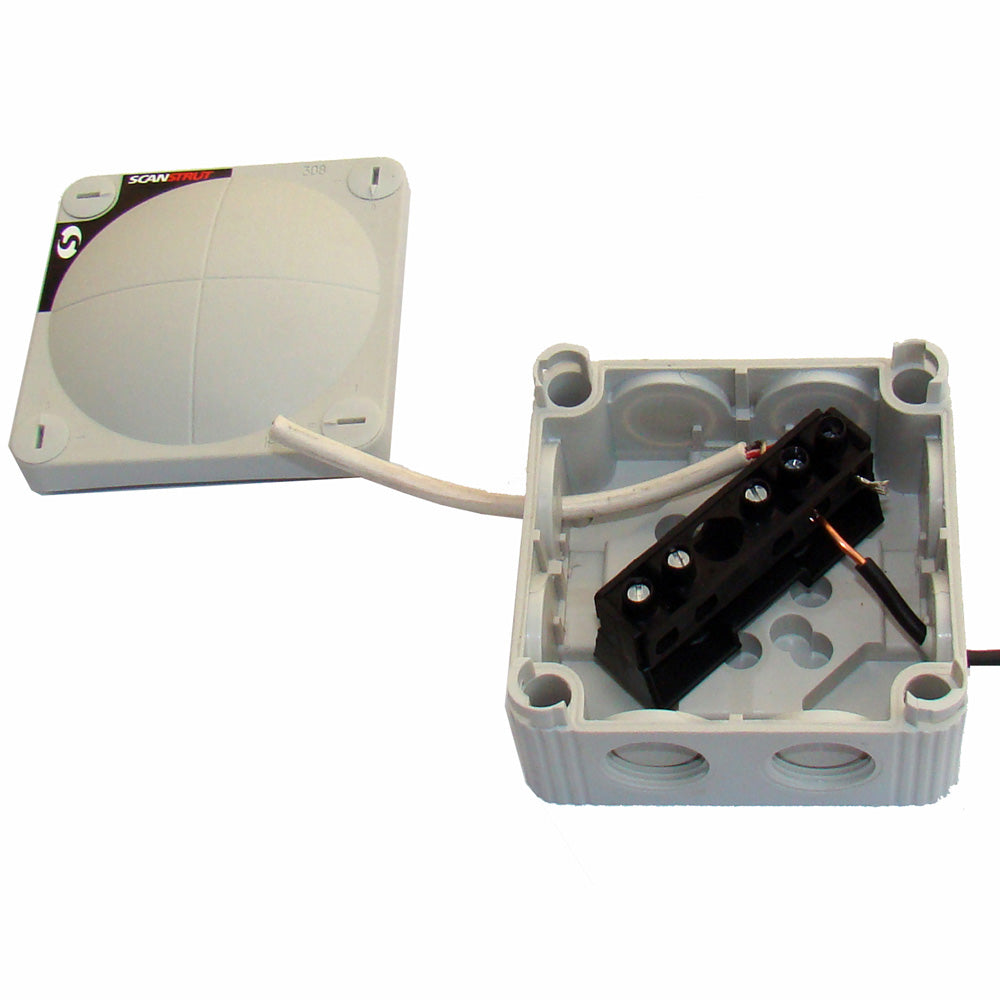

SB-8-5 Junction Box

SB-8-5 Junction Box Scanstrut's SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables. Heavy-duty junction box manufactured from marine grade polypropylene and with features 5 screw-down terminals. Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 5 modular terminal blocks. Offering 5 terminations. Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables. Features: Provides 5 screw-down terminals. Capacity for up to eight (8) cables to enter the box. Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress. Upgradable to IP68 with use of SB-2G Cable Seals (sold separately) Technical Specifications: Maximum cable size (diameter) - .50" (12 mm) Maximum wire size - 16/1.5 to 11/4 Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85 x 85 x 50 mm) Five (5) terminal block w/400 V rating and 32 A Color - Grey Material - Marine grade polypropylene In the Box: Junction box w/five (5) screw-down terminal block Mounting hardware Installation manual *Sold as an Individual

Selling pack: Each

Representative supplier product image. Refer to the title and description for exact size, length, and selling pack quantity.
