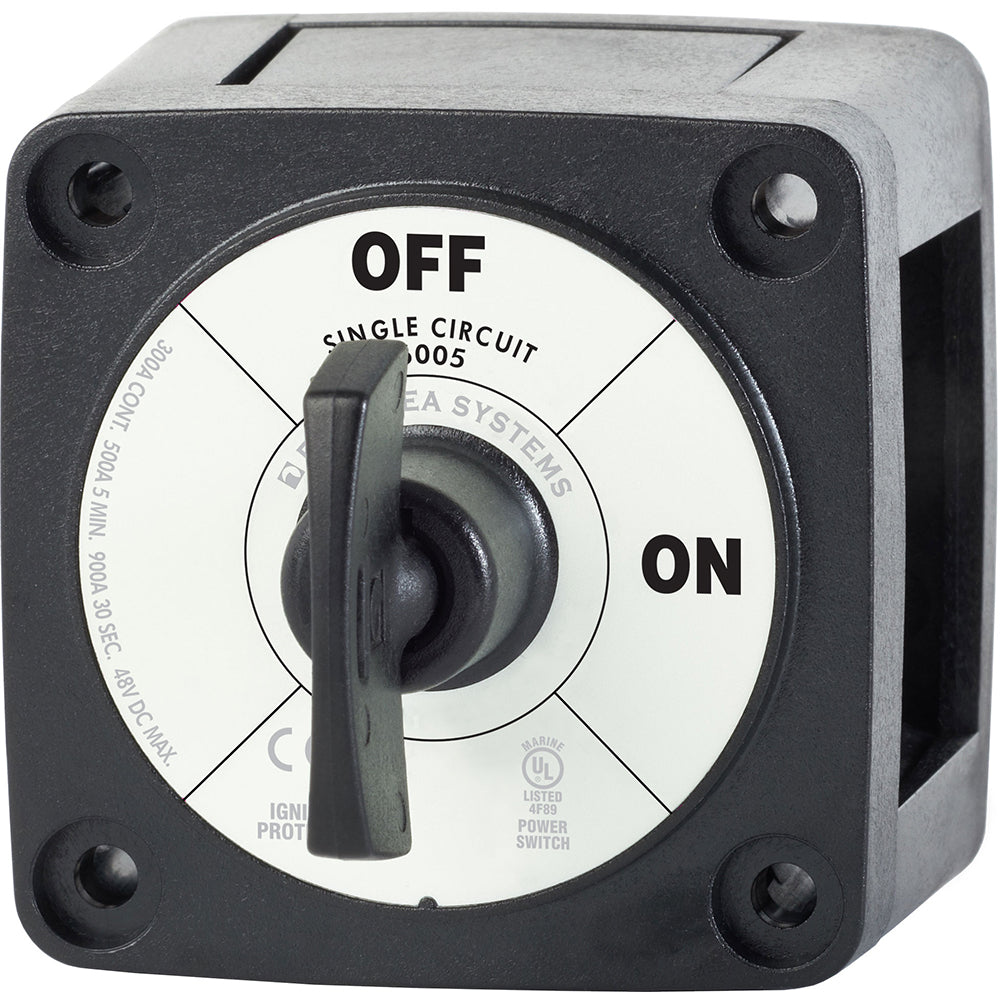

6005200 Battery Switch Single Circuit ON-OFF - Black
6005200 Battery Switch Single Circuit ON-OFF - Black
Regular price
$36.77
Sale price
$36.77
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
m-Series Mini On-Off Battery Switch with Key - Black
Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.
Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.
Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)
Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.
Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.
Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)
Selling pack: Each
Specifications
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Battery management |
