5032 ST-Blade Split Bus Fuse Block
5032 ST-Blade Split Bus Fuse Block
- Circuits
- 12
- Maximum Amperage
- 100A per block, 30A per circuit
- Maximum Voltage
- 32V DC
- Mounting
- #8 Screw (M4)
Regular price
$92.15
Sale price
$92.15
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description

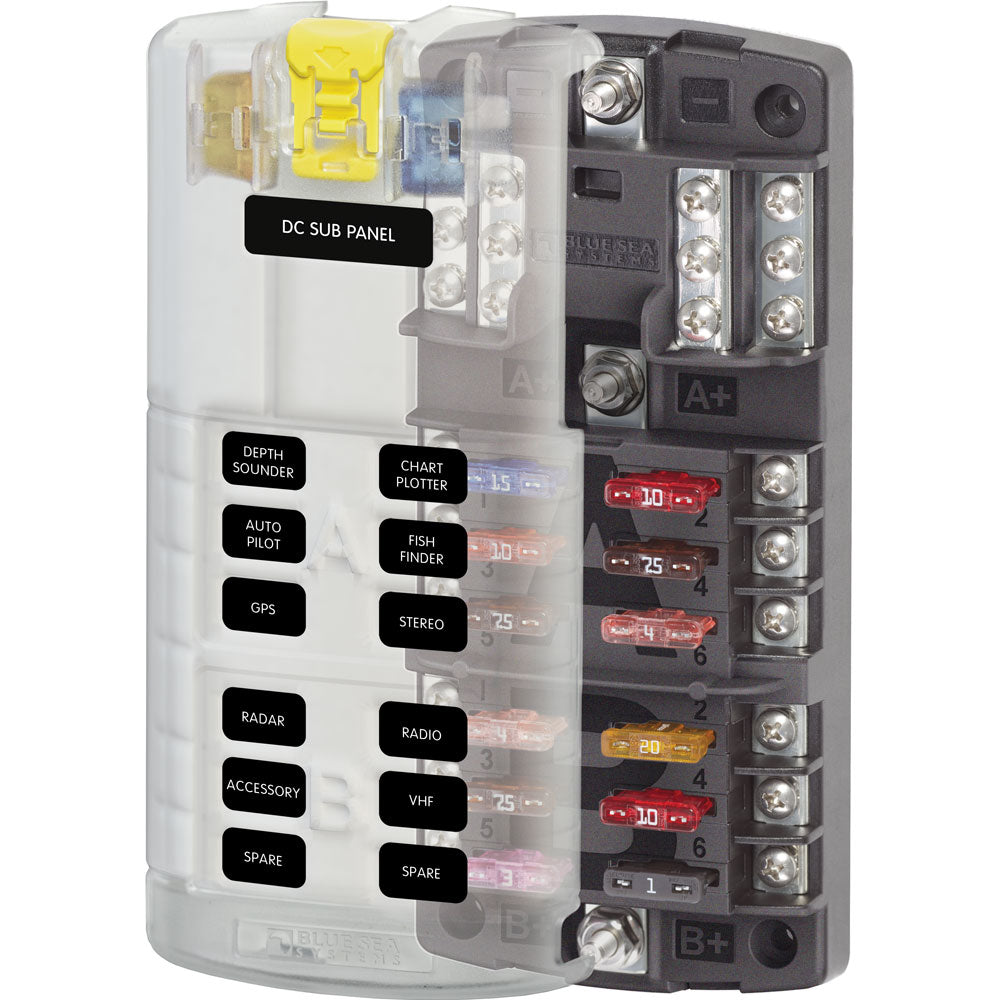

ST-Blade Split Bus Fuse Block
Features:
Specifications:
Features:
- Provides two isolated groups of six ATO/ATC circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
Specifications:
- Circuits: 12
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Screw Terminal Type: #8-32 Screws with captive star lock washer
Selling pack: Each
Specifications
Technical details
| Circuits | 12 |
|---|---|
| Maximum Amperage | 100A per block, 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Fuses & fuse holders |
