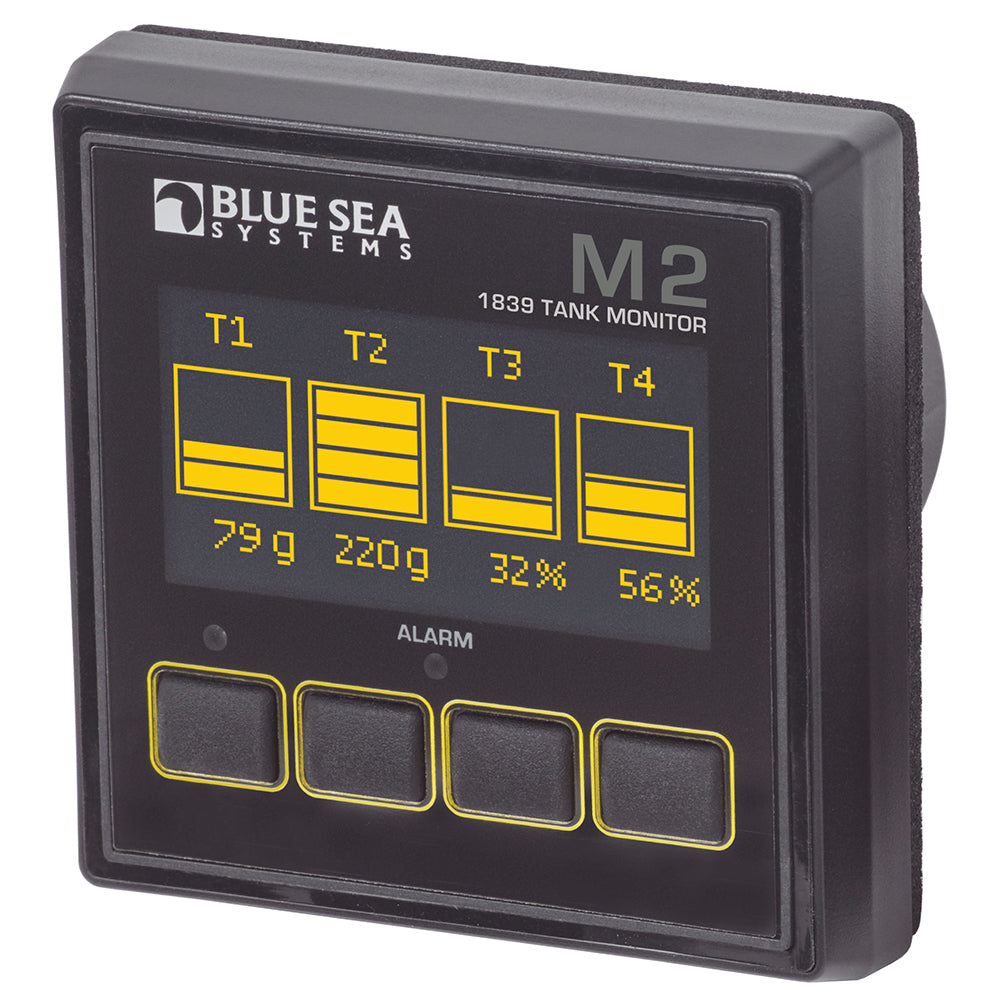

1839 M2 OLED Tank Monitor

M2 OLED Tank Monitor

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:

• Auto-dimming, bright Organic LED display is easy to read

• 80dB alarm on all models

• Isolated 500mA MOSFET relay

• Includes external DC Shunt or AC Current Transformer when required

• Intuitive tank level monitoring

• Monitor up to 4 tanks

• Auto calibration for unique tank shapes

• Compatible with common sending units

Specifications:

• Meter: Tank

• Function: Monitors tank volume in up to 4 tanks

• Resolution: 1%

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC - Variable with voltage, display intensity, and sleep mode

• Range: 0.3W-1.0W

• Tank Alarms: 80dB

• Tank Shapes: Custom shapes, auto calibration

• Weight: 0.25lb (0.11 kg)

Selling pack: Each
