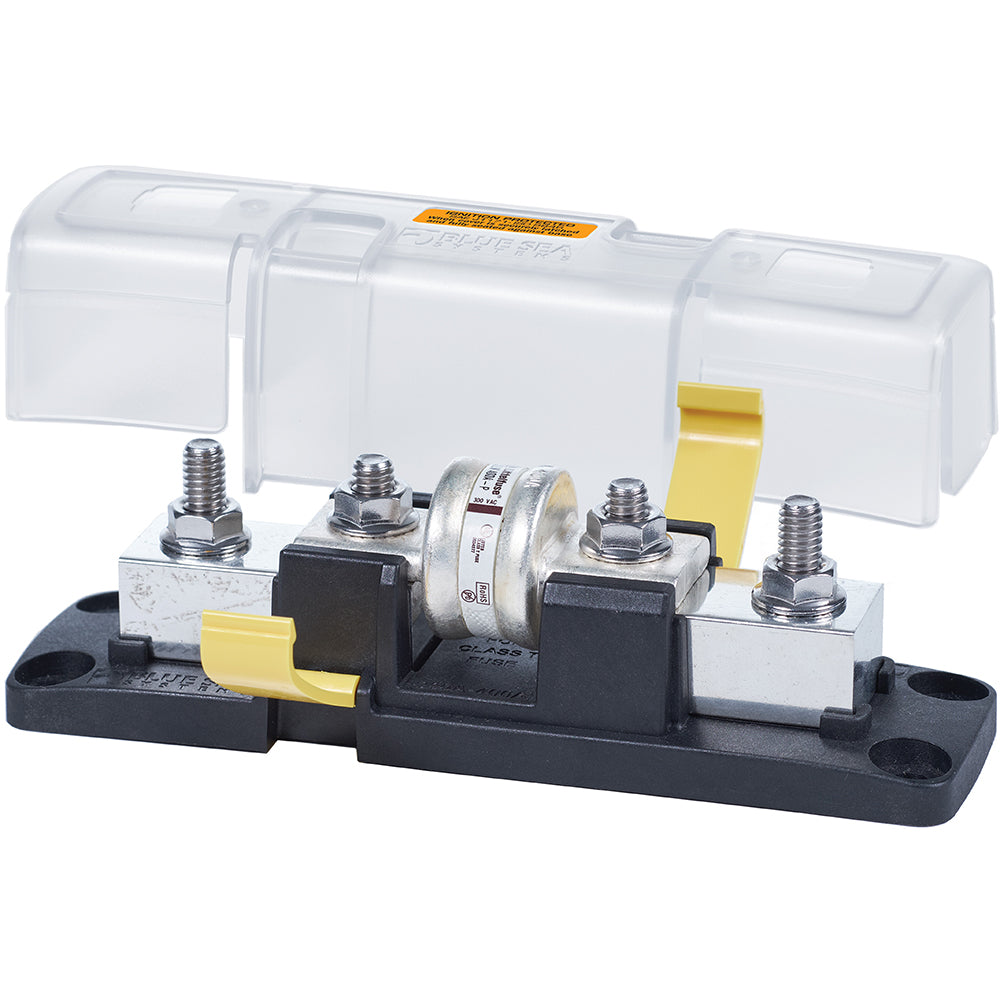

5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A
5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A
- Cable Size
- Up to 4/0 AWG
- Ignition Protected
- Yes
- Maximum Amperage
- 320A
- Maximum Voltage
- 160V DC
Regular price
$126.59
Sale price
$126.59
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Technical Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 320A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 5/16"-18 (M8)
Selling pack: Each
Specifications
Technical details
| Cable Size | Up to 4/0 AWG |
|---|---|
| Ignition Protected | Yes |
| Maximum Amperage | 320A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Terminal Stud Size | 5/16"-18 (M8) |
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Fuses & fuse holders |
