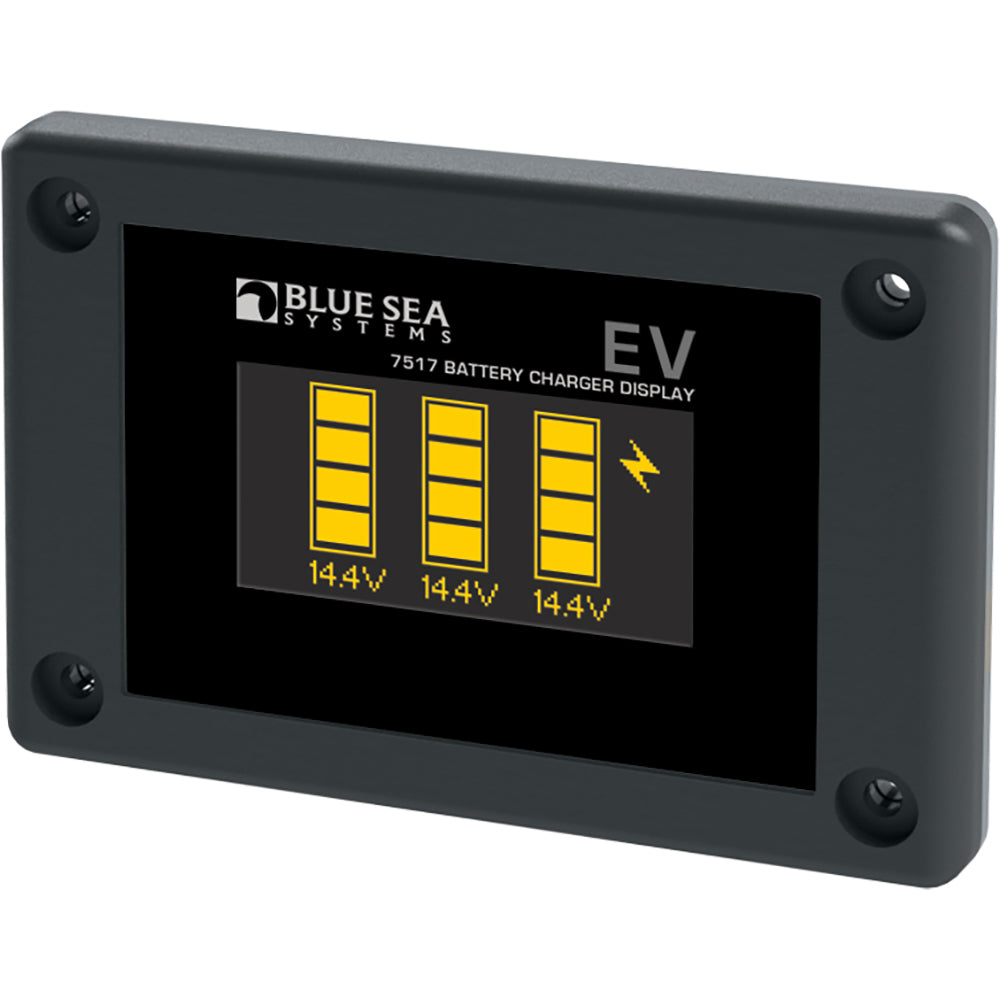

7517 P12 Battery Charger Display

P12 Battery Charger Display

Intuitive Battery Monitoring
The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger's Summary screen, displaying voltage, current charging stage, and faults from the charger.

Features:

• Drop in replacement for traditional rectangular displays

• Automatically detects 1-3 battery banks

• AC charge indication verifies that power is connected and the battery charger is charging

• Plain language fault indication relays if there is a fault with the battery charger

• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen

• Displays voltage bar graphs even when AC power is not present

• Optional standby mode shuts off screen after 4 hours of inactivity

• Automatic ON based on motion with integrated knock sensor

• Bright, daylight readable, OLED display

Selling pack: Each
