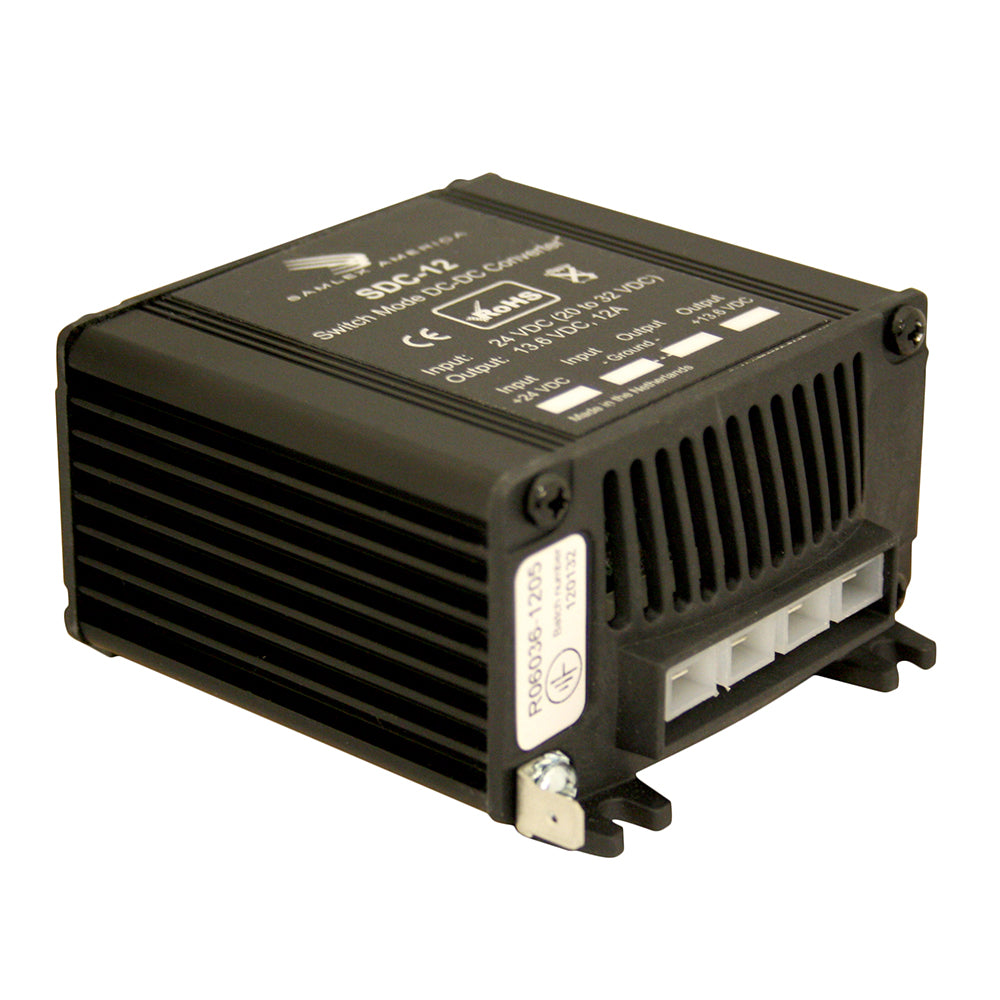

12A Non-Isolated Step-Down 24VDC-12VDC Converter
12A Non-Isolated Step-Down 24VDC-12VDC Converter
- Input
- 20-32 VDC
- Output
- 13.8 VDC
- Amps
- 12 Amps
- Weight
- 1 (lbs)
Regular price
$84.47
Sale price
$84.47
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
12A Non-Isolated Step-Down 24VDC-12VDC Converter
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-12 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit, reverse polarity and over-voltage protection.
Features:
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Cycle by cycle current limiting circuit
- Overvoltage protection
- Short circuit protection
Specifications:
- Input: 20-32 VDC
- Output: 13.8 VDC
- Amps: 12 Amps
- Weight: 1 (lbs)
- Weight: 0.45 (kg)
- Dimensions: 4 x 3.5 x 2 (in)
- Dimensions: 10.2 x 8.9 x 5.1 (cm)
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
Selling pack: Each
Specifications
Technical details
| Input | 20-32 VDC |
|---|---|
| Output | 13.8 VDC |
| Amps | 12 Amps |
| Weight | 1 (lbs) |
| Weight | 0.45 (kg) |
| Dimensions | 4 x 3.5 x 2 (in) |
| Dimensions | 10.2 x 8.9 x 5.1 (cm) |
| Warranty | 2 Year Limited |
Product & packaging
| Brand / supplier | Samlex America |
|---|---|
| Selling pack | Each |
| Product category | DC converters |
