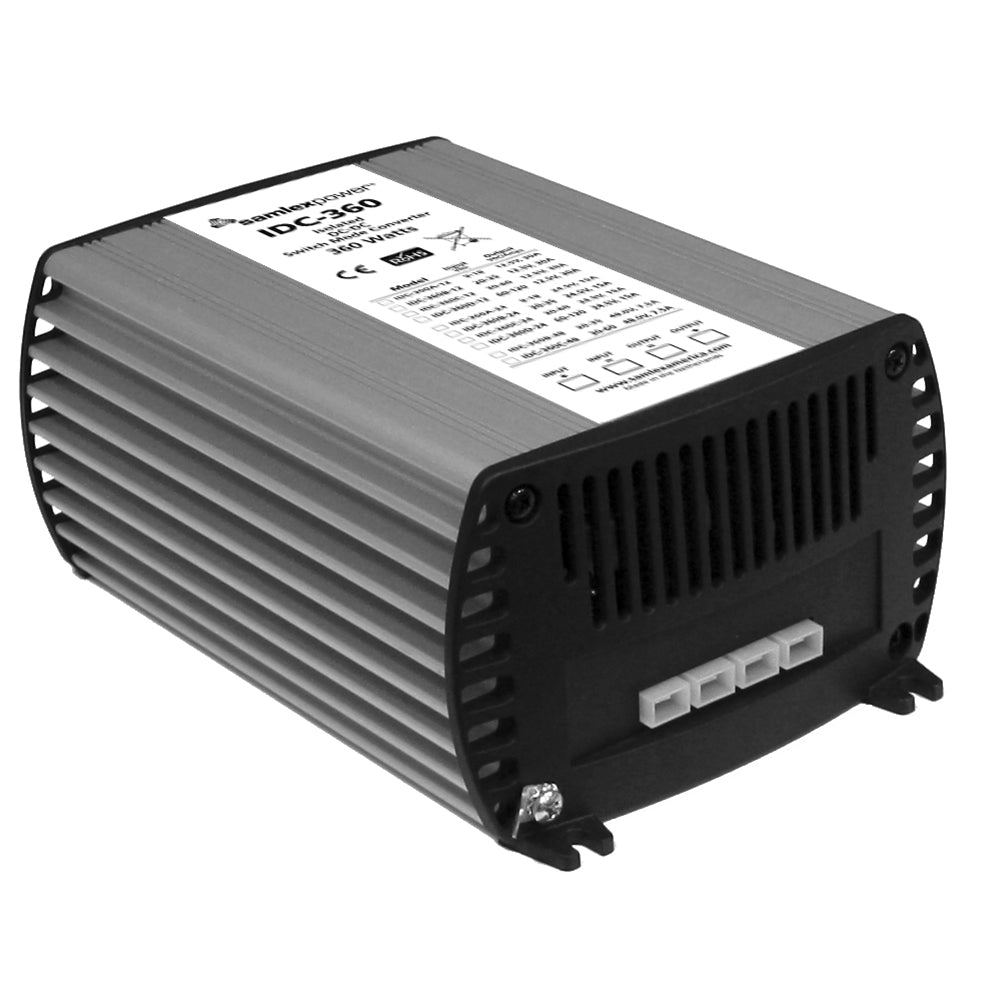

360W Fully Isolated DC-DC Converter - 30A - 60-120V Input - 12.5V Output

360W Fully Isolated DC-DC Converter - 30A - 60-120V Input - 12.5V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360D-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 60-120 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360D-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• CE Approved
• 2 Year Warranty

Specifications:

• Input: 60-120 VDC
• Output: 12.5 VDC
• Watts: 360
• Amps: 30 Amps
• Weight: 3.1 (lbs)
• Weight: 1.4 (kg)
• Dimensions: 5.23 x 7.5 x 3.27 (in)
• Dimensions: 132.8 x 190.5 x 83 (mm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

Selling pack: Each
