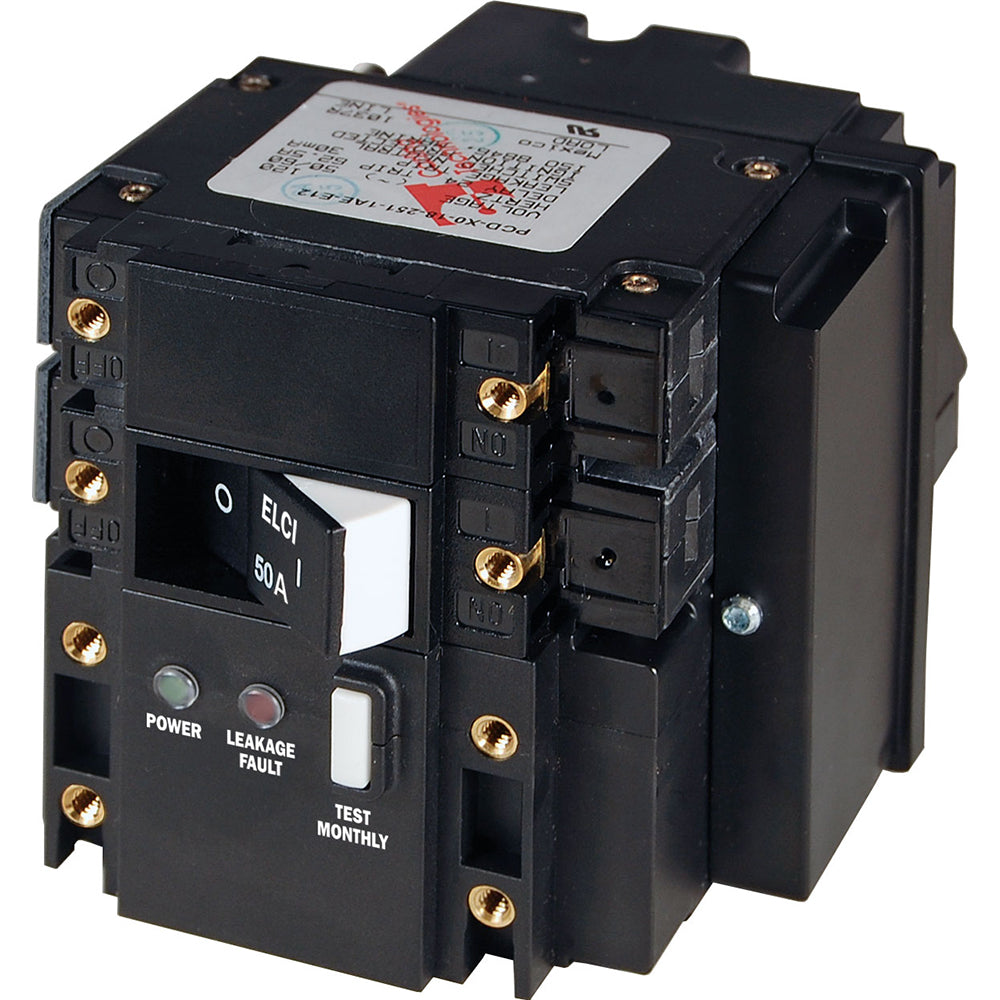

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
- Amperage
- 50A
- Actuator Style
- Flat Rocker
- Poles
- 2
- Ignition Protected
- Yes
Regular price
$728.10
Sale price
$728.10
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
Selling pack: Each
Specifications
Technical details
| Amperage | 50A |
|---|---|
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Max Voltage | 120VAC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 degrees C |
| Max Operating Temperature | 66 degrees C |
| Leakage Trip Amps | 30mA |
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Circuit breakers |
