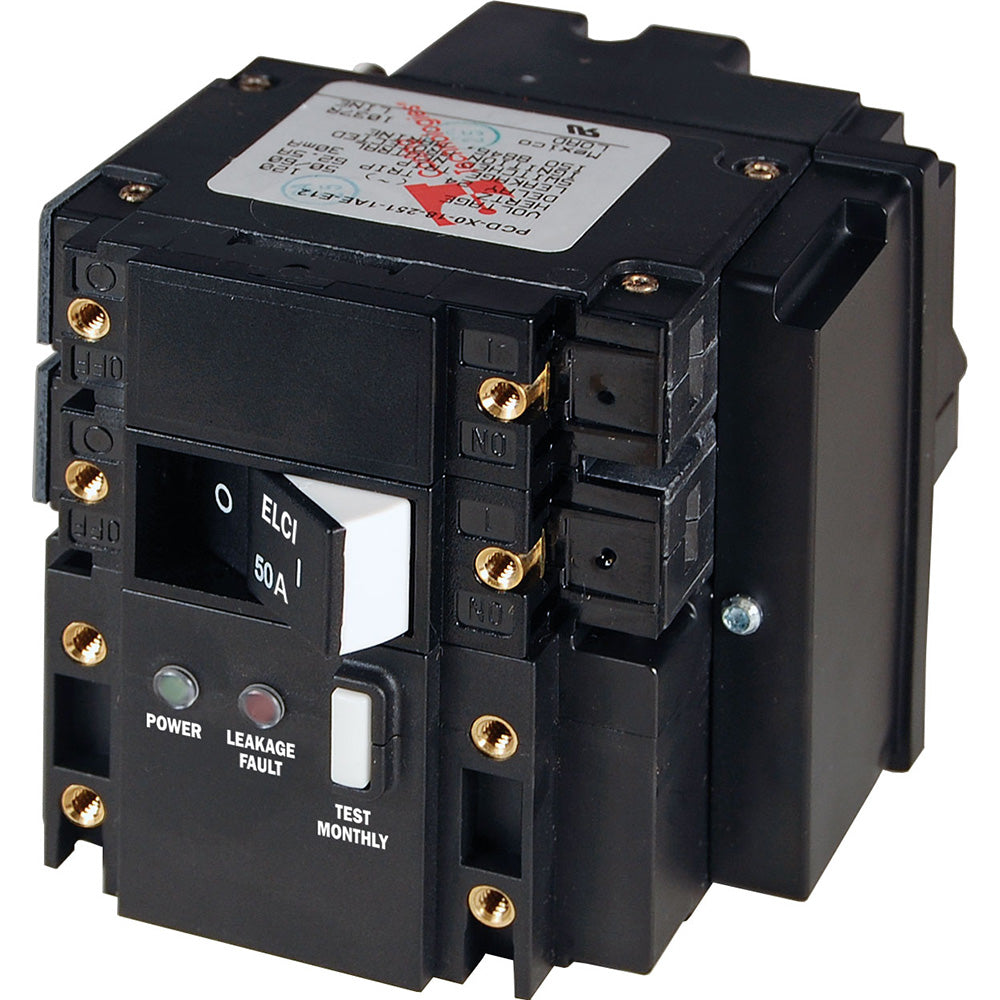

C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
- Amperage
- 50A
- Actuator Style
- Flat Rocker
- Poles
- 2
- Ignition Protected
- Yes
Regular price
$889.12
Sale price
$889.12
Regular price
Shipping calculated at checkout.
Shipping options and charges are shown at checkout.
Selling packEach
The displayed product price is for this selling pack. Quantity 1 adds one complete pack to your cart.
Couldn't load pickup availability
Description
C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
Features:
- Trips on short circuits, overloads, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 120V AC per pole & 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic (trip free)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35° C
- Maximum Operating Temperature: 66° C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 1.20 lb. (0.54 kg)
Selling pack: Each
Specifications
Technical details
| Amperage | 50A |
|---|---|
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole & 240V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic (trip free) |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35° C |
| Maximum Operating Temperature | 66° C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 1.20 lb. (0.54 kg) |
Product & packaging
| Brand / supplier | Blue Sea Systems |
|---|---|
| Selling pack | Each |
| Product category | Circuit breakers |
