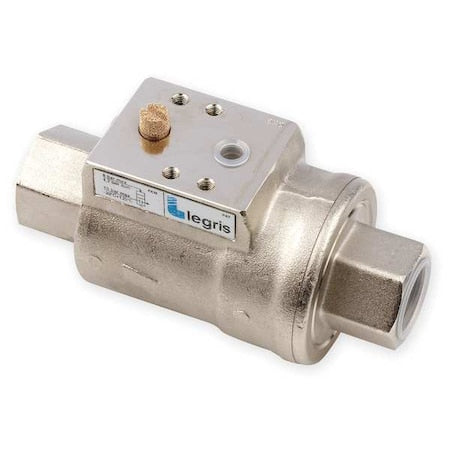

Axial Valve,FNPT,3/4" x 3/4"

Axial Valve, Pipe Size 3/4 in x 3/4 in, Body Material Nickel-Plated Brass, Valve Configuration Normally Closed (NC), Pilot Port Size 1/8 in FNPT, Connection Type FNPT x FNPT, Maximum Operating Pressure 150 psi, Minimum Pilot Pressure 60 psi, Maximum Pilot Pressure 115 psi, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 275 Degrees F, Seal Material FKM, Hex Size 33 mm, Overall Length 4.92 in, Overall Height 2.76 in
