Grade 5, 1/4"-20 Hex Head Tap Bolt, Zinc Plated Steel, 3 in L, 50 PK
Grade 5, 1/4"-20 Hex Head Tap Bolt, Zinc Plated Steel, 3 in L, 50 PK

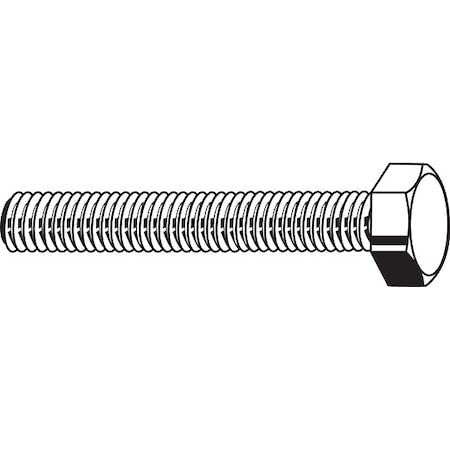

The ZORO SELECT - U01210.025.0300 is a Hex Head Tap Bolt, a type of fastener with a hexagonal head and machine screw threads that taper to a point. This tool is designed for use in drilled and tapped holes, where it's tightened or loosened using an external hex drive such as a wrench or socket. Made from steel with zinc plated finish, this bolt meets ASME B18.2.1 dimensional standards for use in various industrial applications.
- Fastener Length: With a length of 3 inches, the bolt is designed to be inserted into material.
- Finish: The Zinc Plated coating is intended to improve durability, corrosion resistance and aesthetic appeal.
- Globally Sourced: Sourced globally from multiple manufacturers.
- Material Grade/Class: Conforms to Grade 5 standard which denotes certain strength, hardness and resistance properties.
- Tensile Strength: Rated with a maximum tensile stress capacity of 120,000 psi.
- Thread Direction & Style: Features right-hand thread direction that tightens clockwise; The fully-threaded style extends along the entire length from tip to head."
