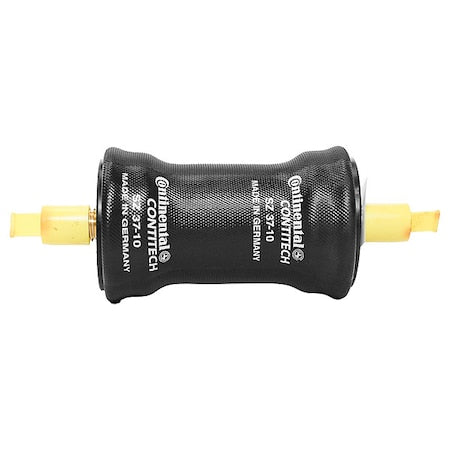

Sz 37-10 P02 1/8 NPT X 2
Sz 37-10 P02 1/8 NPT X 2
Western WA free over $149 · same-day before 3pm PT · no international.
Western WA free over $149 · same-day before 3pm PT · no international.
Sleeve Type Air Actuator, Air Inlet Location Center, Air Inlet Thread Size 1/8 in, Air Inlet Thread Type NPT, Air Spring Material Natural Rubber, Air Spring Type Sleeve, Compressed Diameter - Maximum 3.94 in, Height - Compressed 3 in, Height - Full Stroke 6 in, Installation Space Required 4.72 in, Maximum Dynamic Load Capacity 244 lbf @ 40 psi, 371 lbf @ 60 psi, 501 lbf @ 80 psi, 629 lbf @ 100 psi, 763 lbf @ 120 psi, Mounting Plate Diameter - Bottom 2.4 in, Mounting Plate Diameter - Top 2.4 in
Couldn't load pickup availability
Specifications
Specifications
Product Details
Product Details
